Complex CNC Machining – 3, 4, & 5 Axis
3 AXIS MACHINING – SMINIMILL2, VF0E, VF2(2), VF3, VF4, VF4SS(2)
(click on thumbnail to enlarge)
Vertical Machining Center; 50″ x 20″ x 25″ (1270 x 508 x 635 mm), 40 taper, 20 hp (14.9 kW) vector drive, 7500 rpm, 20-station carousel tool changer, 1000 ipm (25.4 m/min) rapids, 1 MB program memory, 15″ color LCD monitor, USB port, memory lock keyswitch, rigid tapping and 55-gallon (208 liter) flood coolant system.
3 & 4-AXIS 50 TAPER CNC MACHINING

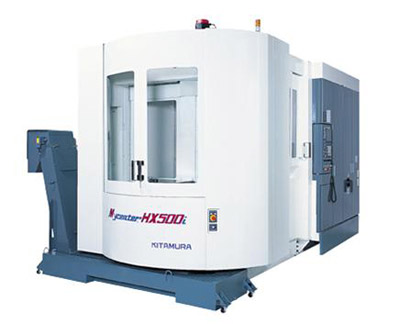

From simple aluminum extrusion profiling to high production titanium complex machining: Mycenter-HX500i
Table Size: 19.7″ X 19.7″ Travel (X,Y,Z): 34.3″ X 28″ X 26″ Spindle Speed: 12,000 rpm Rapid Feed (X,Y,Z x B): 1969 ipm x 12,000 deg/min Positioning Accuracy: +/-0.000078″ / full stroke Repeatability: +/-0.000039″ Fast 2-Pallet Rotary APC maximizes machining uptime and operator convenience and safety Choice of powerful 4-Step 40 taper Geared Spindle or 2-Step 50 taper geared spindles. Both deliver high torque and high-speed for maximum machining flexibility.
5 AXIS - ONSRUD HM, UMC750(2), VF6TR, VR8(2), VR11
5 axis machining offers many advantages. The primary advantage is the ability to save time by machining complex shapes in a single set-up. The superior technology of our 5 Axis milling machines give us the ability to provide services that only a handful of shops in the U.S. can handle.
3- 4- 5- AXIS CNC MACHINING CAPABILITIES
These machines include:
(1) Onsrud Hybrid Mill 5-Axis VMC with a 24-position tool changer (73″ x 224″ work envelope)
(1) Haas VR-11 CNC 5-axis VMC with a 32-position tool changer (40 ” x 120 ” tool envelope)
(2) Haas VR-8 CNC 5-axis VMC with a 32-position tool changer (40″ x 64″ tool envelope)
(1) Haas VF-6TR CNC 5-axis VMC with a 24+1-position tool changer (20″ x 28″ tool envelope)
(2) Haas UMC-750 CNC 5-axis UMC with a 40-position tool changer (30″ x 20″ tool envelope)
(1) Kitamura HX500i HMC with a 50-position tool changer (34.3″ x 28″ tool envelope, 4 axis)
(4) Haas VF-4 CNC VMC with a 20-position tool changer (20″ x 50″ tool envelope, 4 axis)
(1) Haas VF-3 CNC VMC with a 20-position tool changer (20″ x 40″ tool envelope, 4 axis)
(2) Haas VF-2 CNC VMC with a 20-position tool changer (16″ x 30″ tool envelope, 4 axis)
(1) Haas Mini Mill VMC with a 10-position tool changer (16″ x 12″ x 10″ work envelope)
