Sheet Metal Forming and Manufacturing

HYDROFORMING SERVICES

(click on thumbnail to enlarge)

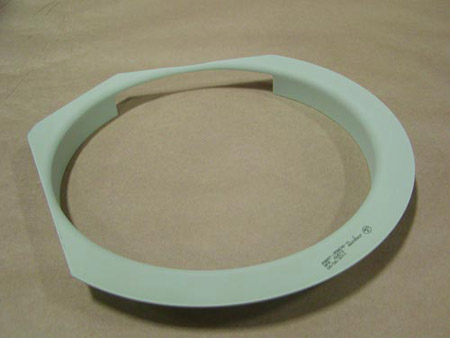

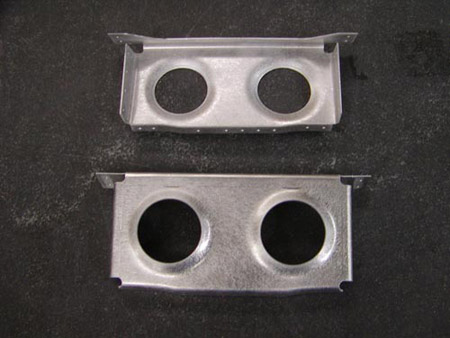

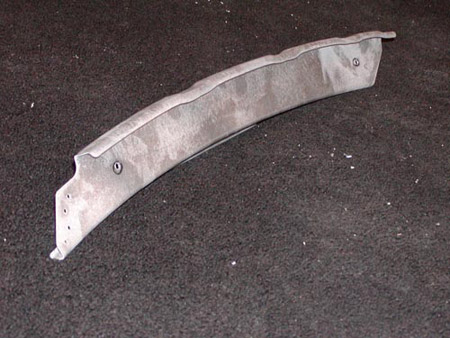

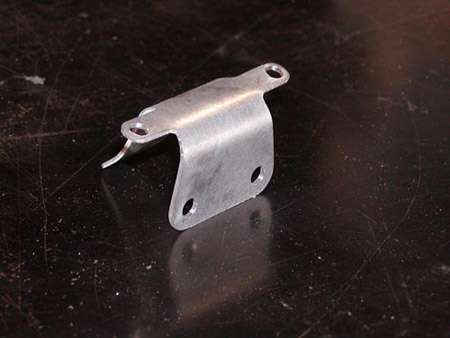

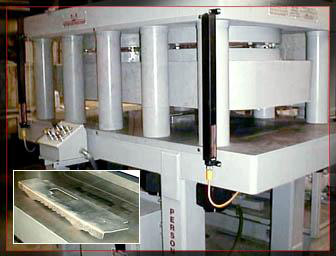

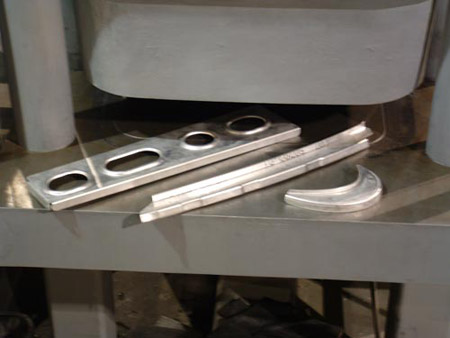

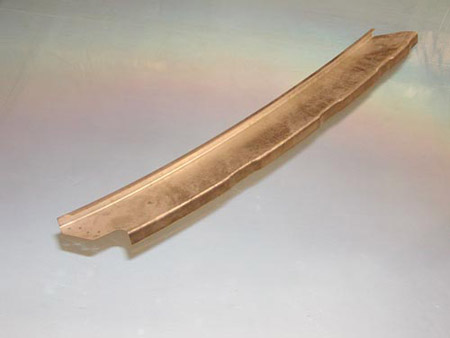

Hydroforming is a cost-effective way of shaping malleable metals such as aluminum into lightweight, structurally sound pieces. This process allows complex shapes with concavities to be formed, which would be difficult or impossible with standard solid die stamping. Hydroformed parts can often be made with a higher stiffness to weight ratio and at a lower per unit cost than traditional stamped or stamped and welded parts. Combining hydroforming with our heat treat facility puts AFG in an elite class fabricators.

(1) Personal Press Hydroform Press (30 ” x 70 “, 1100 ton)

(1) Personal Press Hydroform Press (24 ” x 56 “, 680 ton)

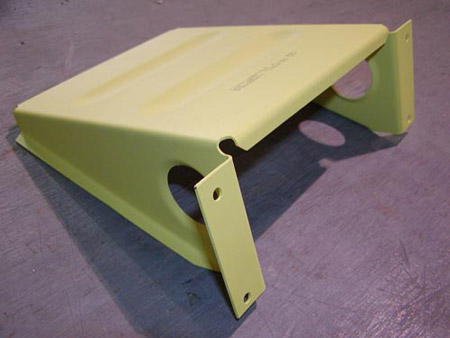

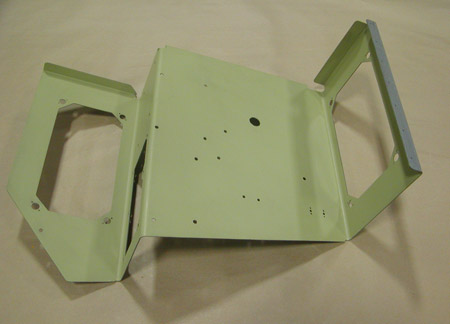

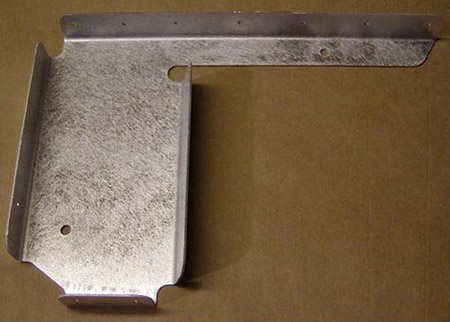

BRAKE FORM, ROLL FORM, AND HOT JOGGLE

Brake Press Machine

No fabrication facility would be complete without these basic, but necessary capabilities. At AFG, we simply use more advanced CNC controlled and cost effective equipment.

(1) Wabash Hot Joggle / Form Press (20 ” X 20 ” table, 50 ton)

(1) Hand Roll Form (36 ” width)

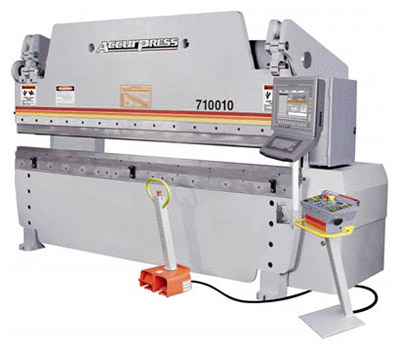

(1) Accupress CNC 3-axis Brake Press (10 ft, 60 ton)

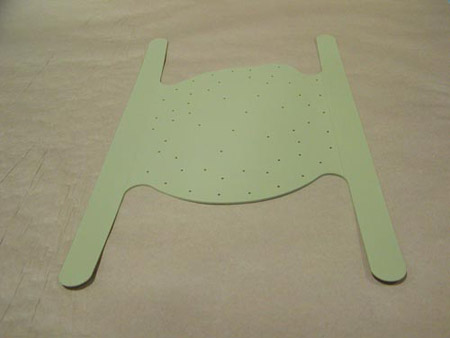

WATERJET CUTTING SERVICES

Waterjet Cutting Services

Our abrasive waterjet cutting machinery is equipped with nesting software that gives us the ability to group several part numbers together for optimum material utilization. The powerful cutting system allows an extremely precise cut through virtually any type of material ranging from 0.010″ to 3.00″ thick.

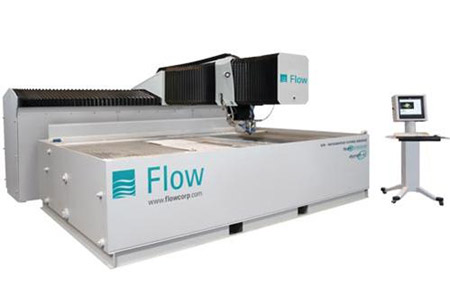

(1) Flow CNC Waterjet (72″ x 144″ tool envelope)

(1) Wardjet CNC waterjet (72” x 144” envelope)
